Description

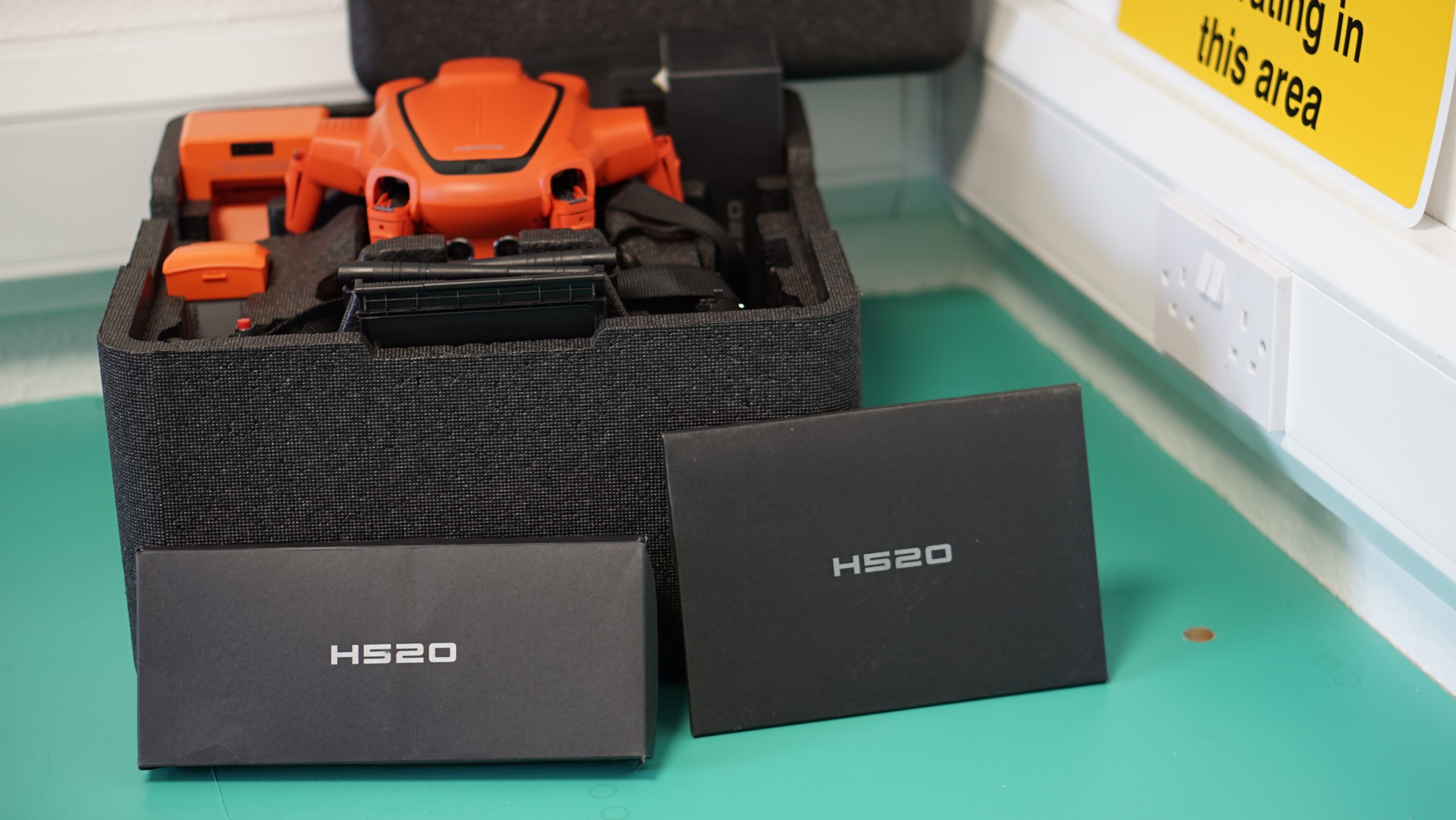

Pre-Owned Yuneec H520e done kit
Aircraft Specifications
Stability: Fly in winds up to 45mph
5 Motors Fail Safe: Fly and complete missions when one motor fails in flight.
Take off weight: 1860g/ 4.1 lbs (w/o payload)
Diagonal Length: 520mm/ 20in (w/o rotor blades)
Dimensions: 551x482x309mm/ 21.6x19x12.1in
Battery: 4S 15.2V LiPo Battery (Power 4)
Battery Power: 5250mAh 4S/15.2V (79,8Wh)
Charger: SC4000-4H
Remote Control: ST16S
Maximum Flying Altitude: 500m
Maximum Rotation Speed: 120°/s
Maximum Rotation Angle: 35°
Maximum Horizontal Speed: 13.5 m/s
Maximum Rate of Ascent: 4 m/s
Maximum Descending Speed: 2.5 m/s
ST16S Ground Station
Operating System: Android
Number of Channels: 16
Transmission Distance Range** (Optimum Conditions):Up to 1 Mile (1.6km)
Video Link Resolution:HD 720p
Video link Frequency Band: 5.8GHz WiFi
Video Transmission: CE Compliance: Up to 1.6km/1 mile
Flight Telemetry on Screen:Yes
Screen:7″ HD LCD Touchscreen
Tactile and Audio Feedback:Yes
In-Built LiPo Battery Voltage / Capacity: 3.6V/8700mAh 31.32Wh Li-ion
Connection Types: 1x HDMI, 2x USB, 1x Headphone
Package Contents
H520e Drone
ST16S Ground Station
2 x batteries – 5250mAh 4S/15.2V (79.8Wh)
SC4000-4H AC/DC Charger
Quick-Release Rotor Set (3x Clockwise / 3x Anti-Clockwise)
Quick-Release Rotor spares (2x Clockwise / 2x Anti-Clockwise)
12V DC Car Socket
Sunshade and Neck Strap for ST16S
Alternative 5.8Ghz Patch for ST16S
